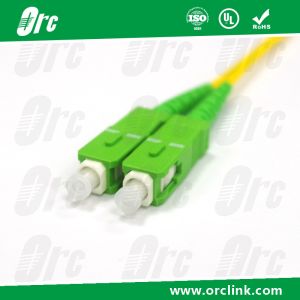

SM OS2 SC / APC Duplex Fiber Optic Pigtail For FTTH / FTTB / FTTX Custom Length

Brand Name : OEM

Model Number : SC/APC-SC/APC-DX-G657A1-3.0-LSZH-xM

Certification : RoHS,ISO9001,CE,UL,CE RoHS FCC

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T

Packaging Details : Individual packaging by Ziplock Bag

Application : FTTH FTTB FTTX Network

Color : yellow

Cable diameter : 0.9/2.0/3.0mm

Return loss : >50dB

Type : Singlemode

Wavelength : 1310/1550nm

Cable color : yellow

Cable length : Customize

Jacket material : PVC.LSZH

Jacket : PVC/LSZH

Operating temperature : -40 to 75℃

Price : Negotiation

Contact Now

Optical Fiber Patch cord SM OS2 SC/APC duplex 3.0mm LSZH cable FTTH

Optic Fiber Patch cord is a removable component which connective two optical communication equipments or devices. ORC’s provides SC, LC, FC, ST,MU, E2000 and MT-RJ connectors assemblies,which can pass rigid optical, mechanical, environmental test based on the GR-326 requirements. And also complies with RoHS compliant.

Features:

◆ High performance in IL&RL

◆ 100% pre-terminated tested

◆ Support simplex or duplex

◆ SM,OM1,OM2,OM3,OM4 or customized

◆ LSZH, OFNR, OFNP available

◆ Compliance with Telcordia GR-326-CORE Compliant

◆ Compliance with UL 94-V0 compliant

◆ RoHS compliant

Applications:

◆ Optical Equipment Connectivity

◆ FTTH/FTTB/FTTX

◆ CATV Network

◆ Telecommunication Network

◆ Industrial&Military

1.Operating & Storage Temperature

	Parameters	Min	Max	Unit
1	Operating Temperature	-40	70	°C
2	Storage Temperature	-40	70	°C

2. Optical Performance

	Item		SM				MM
			1310nm/1550nm IL (dB)		1310nm/1550nm RL (dB)		850nm IL (dB)		850nm RL (dB)
PC		≤0.2		≥50		≤0.30		≥25
APC		≤0.30		≥60		N/A		N/A

3. Geometry Parameters

UPC
Item	Pass/Fail
Parameters	Min	Max
ROC	10.00mm	25.00mm
Fiber Height	-100.0nm	50.0nm
Apex Offset	0.00um	50.00um

APC
Item	Pass/Fail
Parameters	Min	Max
ROC	5.00mm	12.00mm
Fiber Height	-100.0nm	50.0nm
Apex Offset	0.00um	50.00um
APC Angle	7.700deg	8.300deg
Key Error	-0.500deg	0.500deg
